Regain safe, dignified access to porches, decks, garages and raised entrances. Compare every current Mac’s, Harmar and Bruno vertical platform lift family with expert consumer guidance from Electropedic.

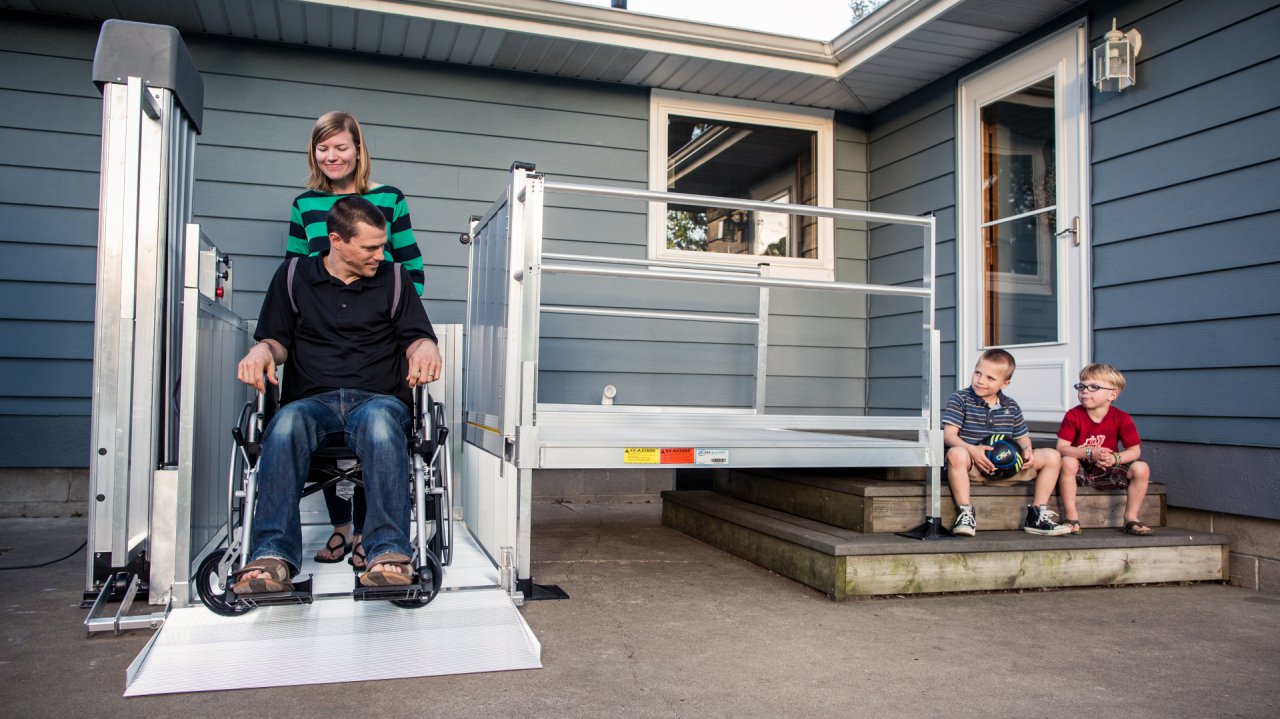

A vertical platform lift carries a wheelchair, scooter or standing passenger between two landings. Often called a porch lift, wheelchair elevator or wheelchair lift, it can solve a short vertical rise without the long footprint of a ramp.
Compare new equipment, professionally evaluated used equipment, rental possibilities and financing. The right choice depends on travel height, platform size, location, local code and the condition of the site.
A safe project considers the concrete base, upper landing and gate, electrical service, clear approach, drainage, weather exposure, permits and required inspections before installation begins.
Mac’s builds straightforward outdoor- and indoor-ready vertical lifts. Model names generally identify the approximate maximum rise; final configuration must be verified for the actual site.
The PL-50 is designed for everyday residential access at porches, decks and low landings. Available information describes a low roll-on platform, automatic folding access ramp/roll stop, key-operated constant-pressure controls, weather-resistant construction and emergency manual lowering. It is a practical starting point when the rise is roughly four feet or less.
The PL-72 extends the same residential concept to landings as high as roughly six feet. Straight-through and available adjacent-exit layouts help the lift fit different approaches. Platform, gate, AC or battery choices should be matched to the wheelchair dimensions, turning space and power-outage needs.
The PL-90 serves projects needing more travel than the familiar PL-50 or PL-72. Greater rise normally brings additional guarding, landing and code considerations, so a site measurement and jurisdiction review are especially important before a proposal is finalized.
Mac’s extended vertical-lift family addresses rises around 107, 121 and 134 inches, with custom taller applications also described by the manufacturer. These are not simply taller porch lifts: enclosure, hoistway, gates, structural work and commercial or accessibility rules may materially change the project.
The PSL-50 is intended for portable access to stages and platforms rather than permanent porch service. A movable lift can be valuable in schools, churches and event spaces, but operators still need a stable surface, adequate clearance and a procedure for safe setup, use and storage.
Straight-through travel works when the lower and upper approaches line up. An adjacent or 90-degree exit can solve a tight layout by allowing the rider to leave from the side at the top. Measure the mobility device—not only the user—to confirm platform width, length and gate clearance.
Bruno’s current residential platform-lift information identifies two series, a 750-pound capacity and configurations for indoor or outdoor use.
The VPL-3100 Series gives wheelchair, powerchair and scooter users a compact alternative to steps. Bruno highlights a low-threshold entry, automatic folding ramp barrier, obstruction sensing and weather-capable construction. Available travel heights, platform sizes, exit arrangement and power package should be confirmed with the dealer.
The VPL-3200 Series is also listed in Bruno’s current residential technical resources. It should be evaluated alongside the 3100 for the specific rise, landing layout, platform and gate requirements. A written proposal should identify the precise model, travel, options, electrical needs and site preparation.
The folding ramp serves as a roll-off barrier at the lower opening, while an optional platform gate adds protection on the platform. Powered gate operators can reduce reach and effort. At the upper landing, a correctly interlocked landing gate helps guard the opening whenever the platform is below.
Call/send controls allow the empty lift to be moved from a landing, useful when more than one person uses it. Power-assisted or powered door and gate choices can make independent use easier. Control placement should be reachable, visible and protected from unintended operation.
Household-current models offer straightforward operation, while battery-powered configurations can continue operating during an outage when properly maintained. Bruno notes AC as standard on some shorter units and battery power on ten-foot units; verify the selected series and local electrical requirements.
A code-compliant ramp can require substantial length for even a modest rise, plus landings and turns. A vertical platform lift uses a much smaller footprint and may be easier for a wheelchair user to operate. The best answer depends on property layout, budget, maintenance and emergency egress planning.
Harmar’s current home-access lineup provides 750-pound capacity choices from short porch rises through enclosed systems reaching approximately fourteen feet.
The simple, sturdy VPL400-X is designed for decks, porches and garage entries with a maximum lift height of about 53 inches. Harmar lists five platform sizes, a 750-pound capacity and a sealed DC gear motor powered from a 120-volt supply. Its short-rise focus can make it an efficient solution for common residential steps.
The VPLX-DC also serves rises up to approximately 53 inches but operates from a 48-volt battery system maintained by a household GFCI outlet. Battery operation can preserve access during many power interruptions. Confirm charger location, battery maintenance, climate exposure and emergency-lowering procedure.
The VPL400 is the shortest member of the modular Highlander II family. It combines a 750-pound rating with several platform sizes and residential or commercial possibilities.
The VPL600 extends Highlander II travel to approximately 77 inches, making it useful for taller porches and elevated garage entries. Accurate landing construction, gate alignment, bracing and local code review are important.
The VPL800 travels up to approximately 101 inches. At this height, the project may require more extensive guarding or an enclosure. A complete proposal should identify every gate, door, structural element and electrical responsibility.
The VPL1000 provides travel up to approximately 125 inches for substantial elevation changes. It can serve a high deck or between-floor application where a ramp would consume extensive space.
The VPL1200 reaches approximately 149 inches while retaining the Highlander II family’s 750-pound capacity. Higher travel increases the importance of enclosure decisions, rescue planning, inspection requirements and service access.
The VPL1400 is the tallest standard Highlander II model listed, traveling up to approximately 171 inches. Expect a more involved project scope than a low porch lift, including site engineering and jurisdictional review.
Harmar offers an enclosure system for Highlander II lifts up to about fourteen feet. It must be correctly configured with doors, interlocks, landing construction and site drainage.
Measure from the finished lower approach to the finished upper landing. Also record clear width, overhead clearance, door swing, railing position, drainage slope and the path a wheelchair uses to enter and exit. A few inches can change the model or required construction.
Measure the full mobility device with footrests, anti-tip wheels, oxygen carrier or other accessories. Allow maneuvering room and identify whether straight-through or adjacent exit is safer. Confirm that the combined user-and-device weight stays below the rated capacity with an appropriate margin.
A professionally evaluated used lift can offer major savings when its rise, platform, controls and configuration fit the new site. Ask what has been inspected, what parts are included, what preparation and installation cost, and what warranty or service support accompanies the equipment.
Many VPL installations require a level concrete pad, an accessible path to the platform and secure construction at the upper landing for a gate. Mac’s installation information calls for smooth, flat concrete of specified size and thickness; every job must follow the selected manufacturer and local authority.
Consider outage frequency, user independence, available circuits, charger location and maintenance. Battery operation can preserve access during a blackout; AC can be simpler. Ask how emergency lowering works and who can safely use it if normal power or controls fail.
Temporary recovery, a short-term residence or uncertain future needs may make rental worth discussing. Ownership often makes sense for long-term access. Compare the total installed price—including permits, concrete, electrical work, gates, delivery and removal—not merely the lift’s equipment price.
Look for constant-pressure controls, an automatic roll-off barrier, a protected upper landing, obstruction sensing, emergency lowering, non-skid surfaces and appropriate gates or doors. Safety devices must remain functional and should never be bypassed to make an unsuitable installation fit.
Rules vary by city, county, state, occupancy and installation type. Ask the local authority which permits and inspections apply and whether a licensed trade is required. Commercial, multifamily and public-use projects may have requirements beyond a private residence.
Outdoor readiness does not eliminate the need for drainage, correct anchoring and routine care. Keep snow, leaves, debris and standing water away from the platform and tower. Follow the owner’s manual for inspection, cleaning, lubrication and battery replacement schedules.
A VPL is a complete access project, not just a machine. Electropedic can help coordinate product selection, site evaluation, delivery, installation and service from Burbank and Phoenix. Bring photos and measurements, then arrange a field evaluation before final ordering.
Call Electropedic to discuss new, used, rental and financing possibilities for your property.
